Schimmel VR6 12V Oil Filter Housing

-full racing performance + daily driving protection. The Schimmel 12v Oil Filter Housing dramatically improves start up lubrication. Protect your engine block and internals during its most vulnerable state! The magic starts out with a 5.5lb billet block of 6061 T6 aluminum alloy. After many hours of machining, it is reduced to 1.75lb of perfected eye candy.

Equipped with the most common spin on oil filter thread, 13/16-16”, a builder may choose from over 20 different brands spin on filters including: Bosch, Amsoil, Mobil1, Fram, Wix, and high-end reusable examples, too.

The oil filter housing comes with one high-quality Bosch oil filter featuring an anti-drainback valve. This valve's purpose is to keep the oil filter filled at all times. So, when the engine is started, there will be an almost instantaneous supply of oil to the engine. Whereas, the original design allows oil to drain out of the filter through the oil pump when the engine is stopped. Upon next start up, oil must refill the filter before full oil pressure and flow can reach the engine.

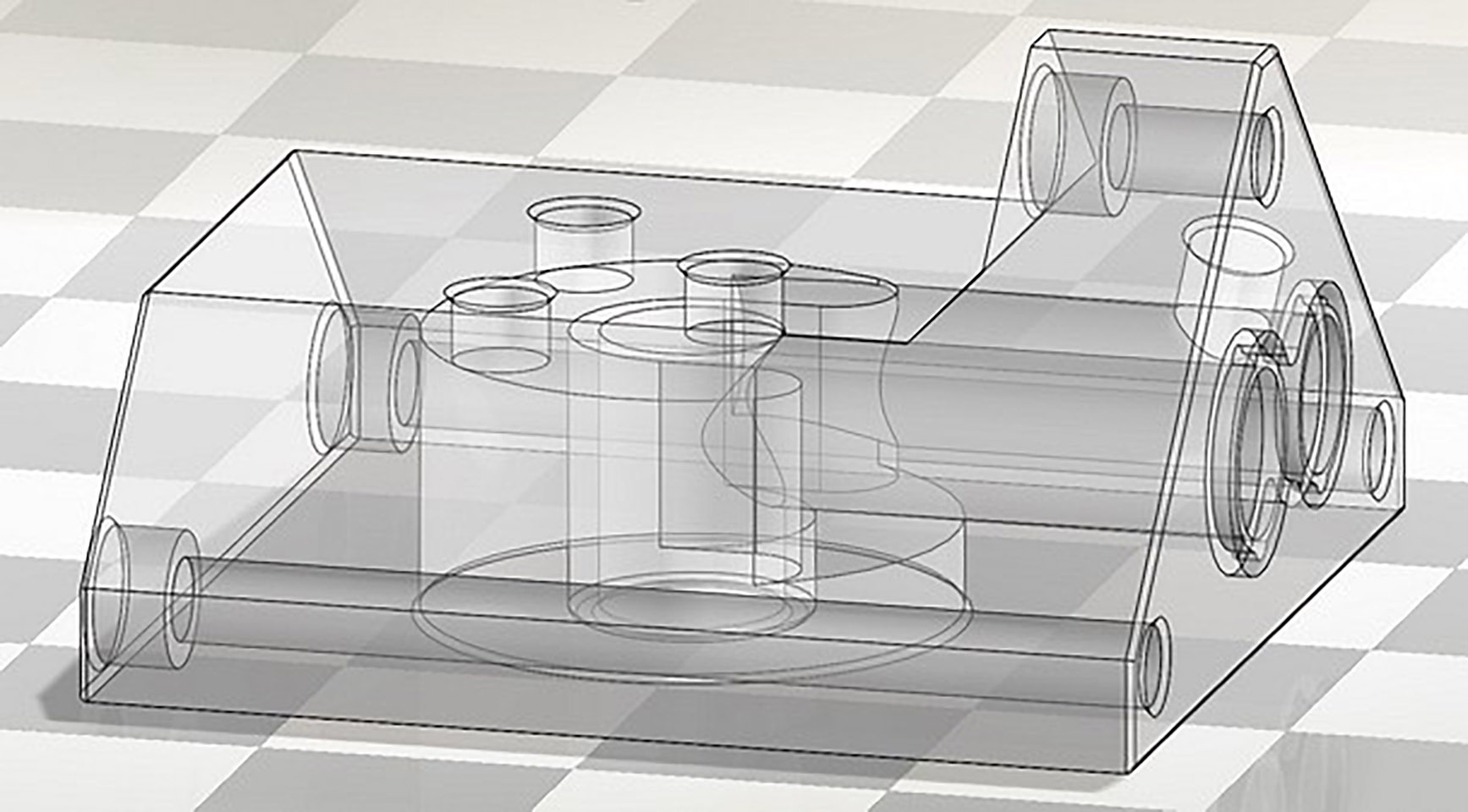

Schimmel VR6 12V oil filter housing CAD

The housing also features an extra 1/8 NPT port to feed a turbo with fresh oil or to install a proper oil pressure sender after the oil filter. The OEM oil filter housing has three ports for sensors on top. All of these ports are unfiltered oil from pan and are before the filter. Thus, any of these ports are subject to sending dirty oil to your turbo bearings which will drastically reduce its life and performance. And, in case of gauge setup, the pressure drop after the filter will not be factored in.

This system = "DOING IT RIGHT".
Schimmel VR6 12v oil filter housing mounted on block

Notes: Fits all 12v VR6 variants. Cars with AC must clearance upper AC hose (requiring slight bending) to complete installation. The AC hose bracket must also be clearanced slightly.

Schimmel VR6 oil filter housing AC bracket modification

Each kit comes equipped as follows:
1. Oil Filter Housing
2. Stainless steel cap screw fasteners
3. Bosch spin-on filter
4. OEM engine block o-ring seal

HIGHLY RECOMMENDED: A Mocal Thermostatted Adapter Plate allows for faster than standard oil warm ups, less oil heat relayed to the water cooling system, and the means to align inlet/outlet ports for custom layouts. Examples are a swap into MK1, MK2, MK3 when front engine bracket provisions are needed.

Mocal Thermostatted Oil Filter Adapter Plate for VW VR6

Starting at: $285.00

Please Choose:

Add Options

Starting at: $285.00

Add to Cart:

Ask a Question

  • Model: OILHOUSEVR6
  • Manufactured by: Schimmel Performance
