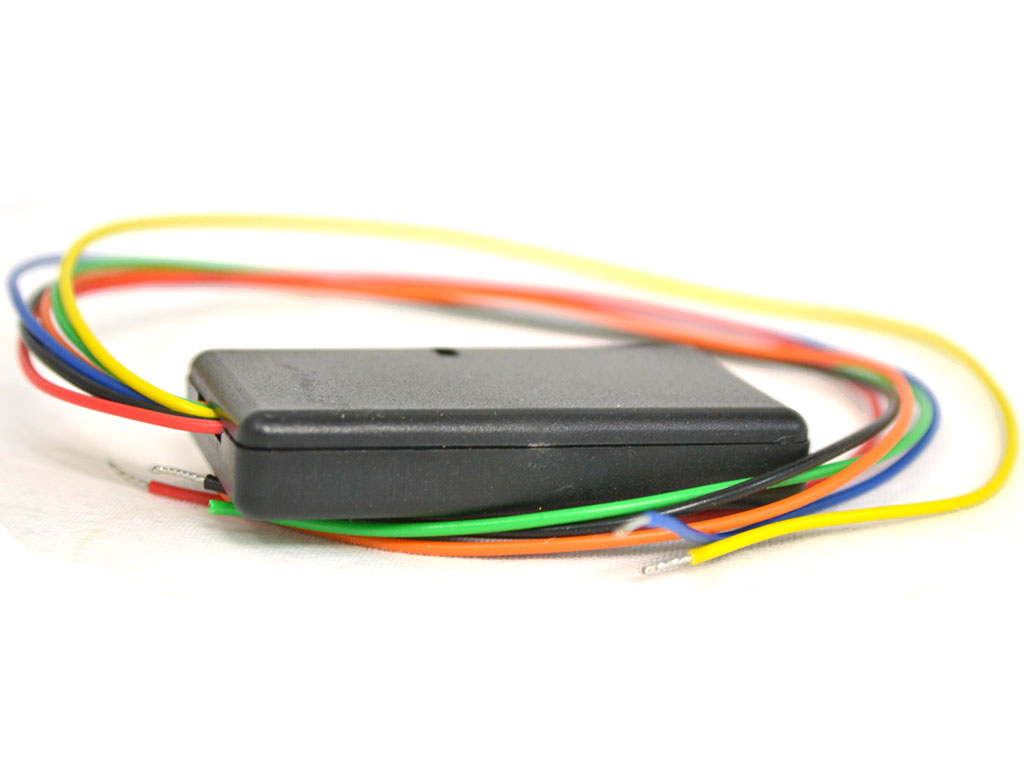

Connect to the two wires behind your MK5+ OBD2 port to collect vehicle speed and RPM information. Late model vehicles use digital sensors. So, information collection becomes a challenge. This widget makes it EASY.

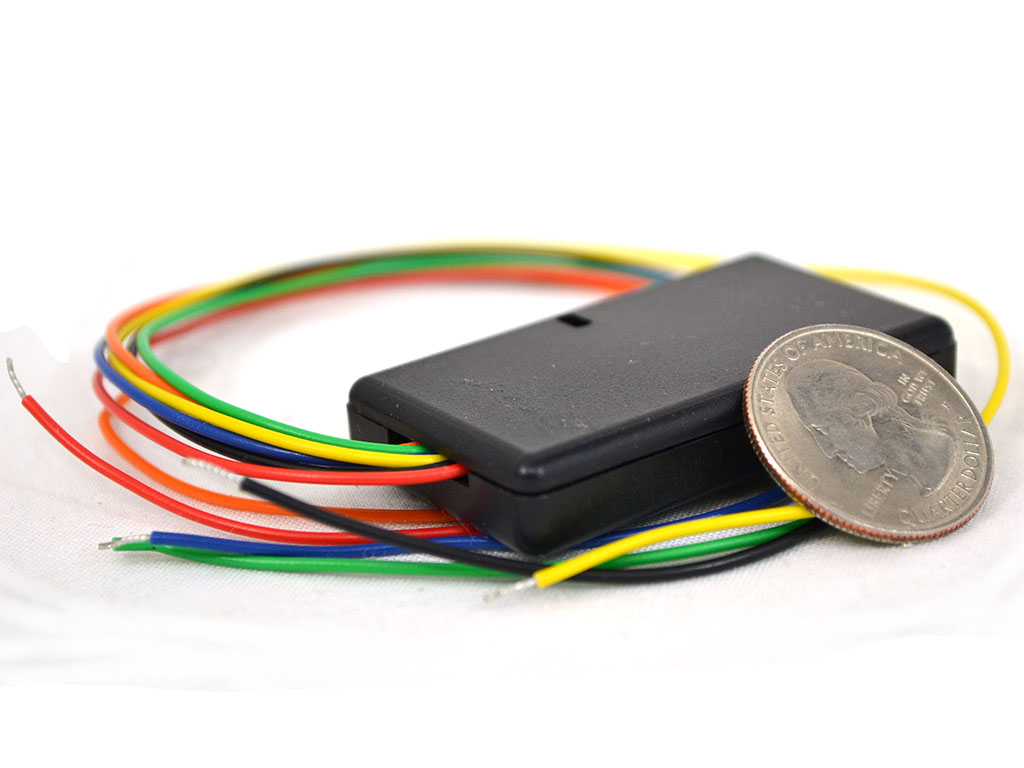

Features built-in diagnostic LEDs to indicate CAN Bus status. Simple setup. TINY size.
Applications: Cortex EBC, Torqbyte, standalone ECU, anything else that needs an analog VSS + RPM signal from CAN Bus.
| Colour | I/O | Function |
|---|
| Black | I | Ground |
| Red | I | Power +12V regulated ignition controlled supply |
| Yellow | I | CAN High |
| Blue | I | CAN Low |
| Orange | O | Speed Pulse Output 12V |
| Green | O | RPM |
